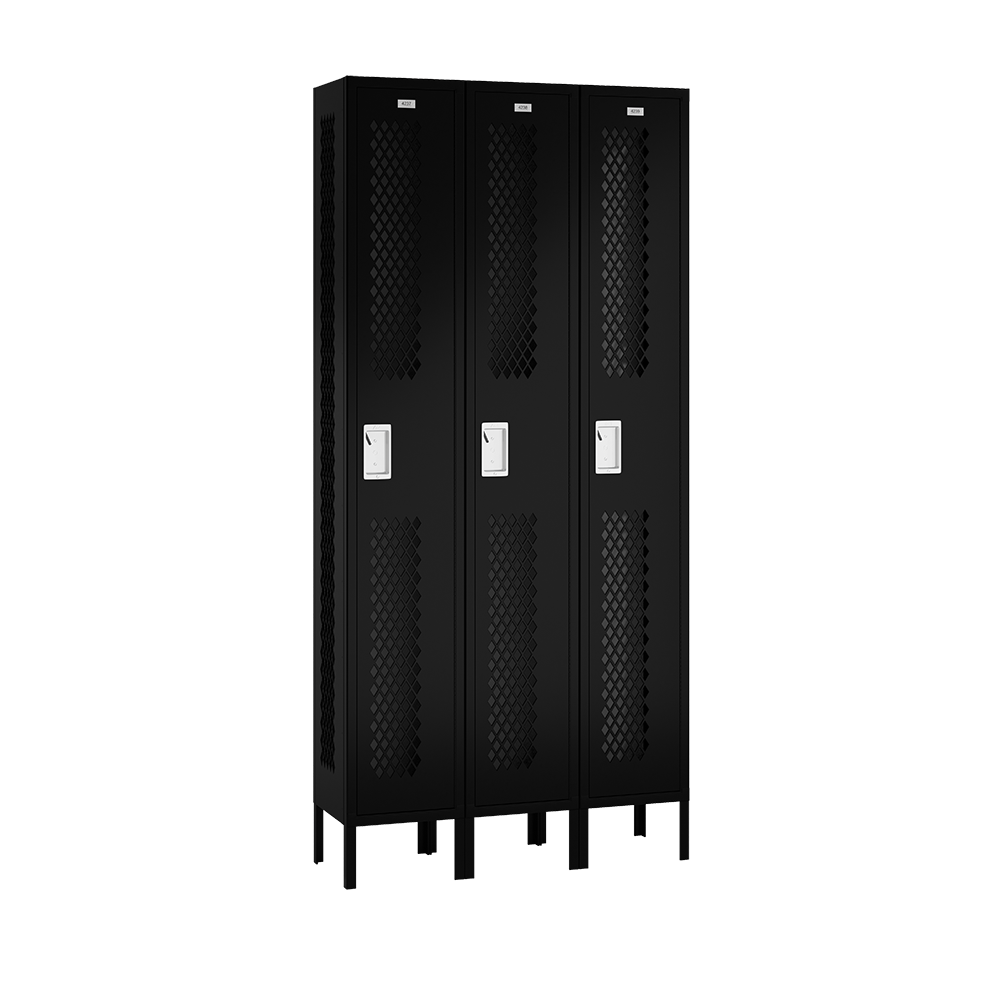

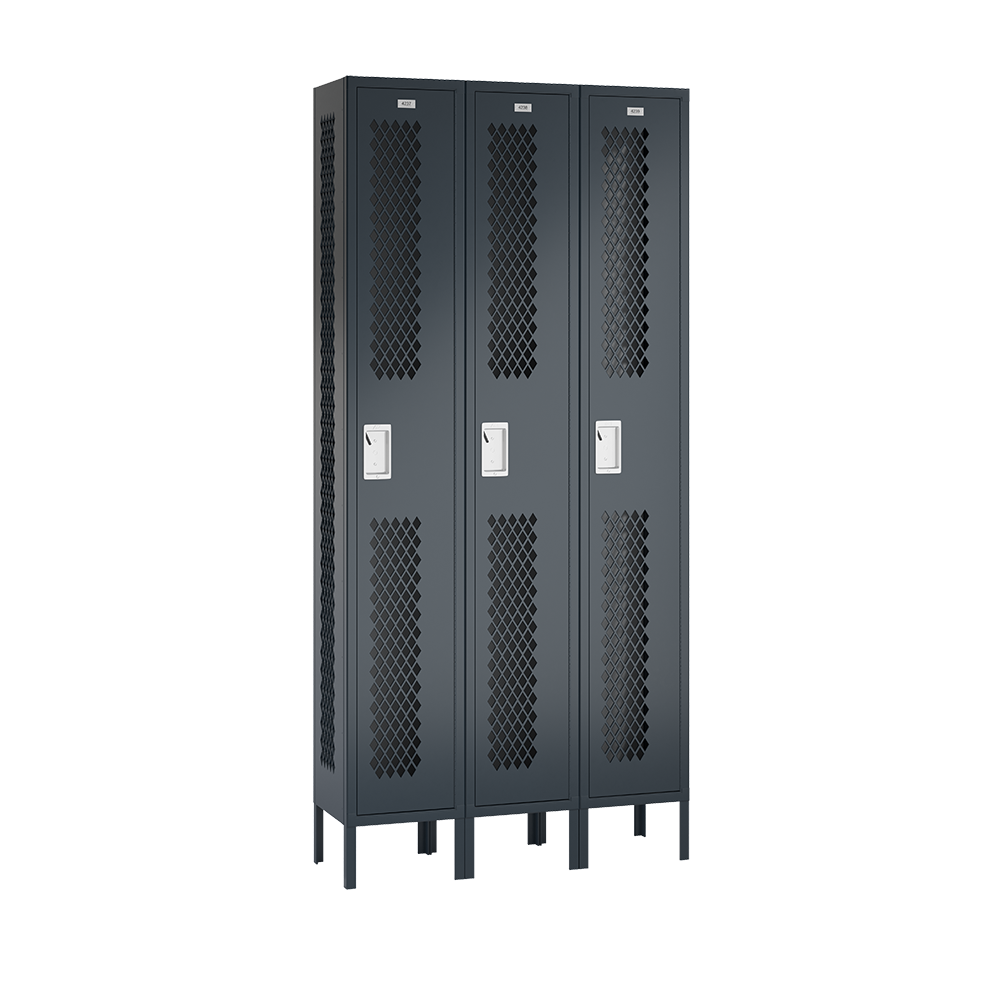

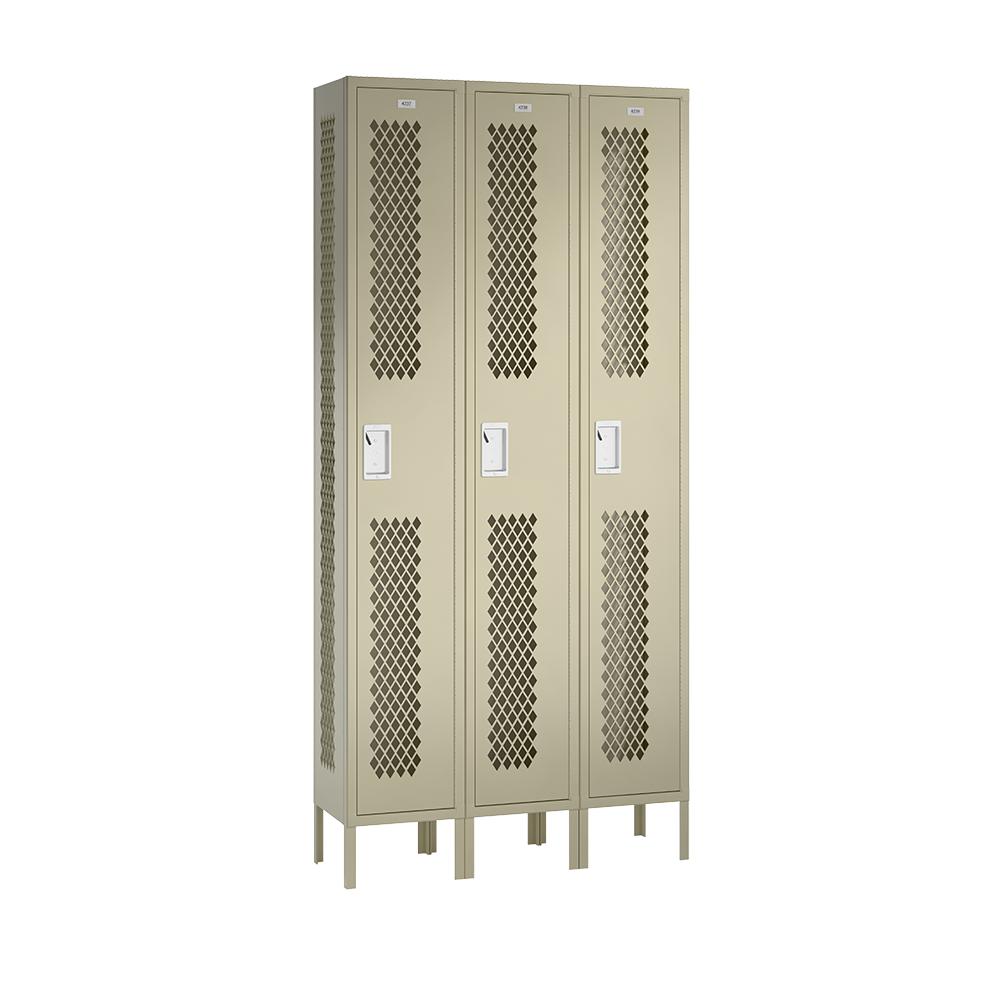

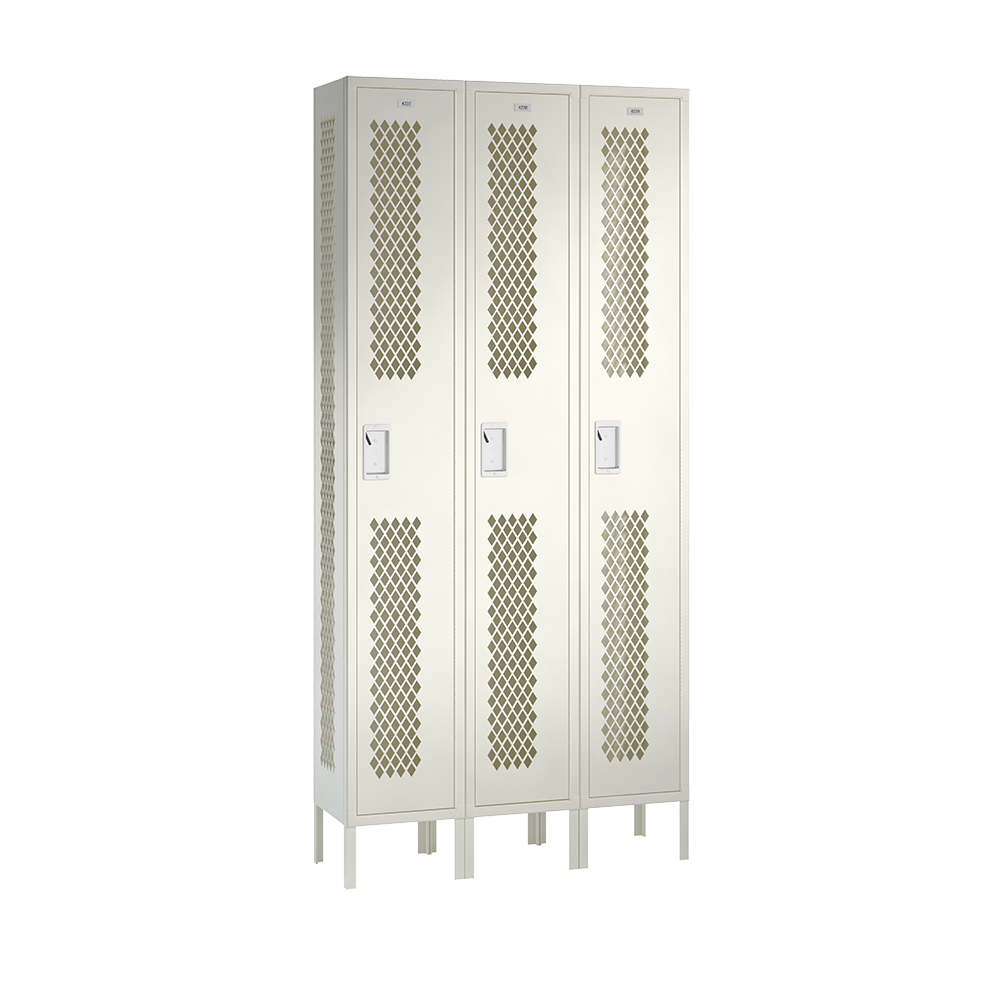

Competitor Athletic Metal Locker — 1 Tier, 3 Wide

 Description

• Model: ASI Single Tier Competitor Collection Powder Coated Metal Locker
• Type: Offers the ultimate in ventilation and visibility combined with strength and visual appeal
• Application: The ideal choice for athletic lockers and many other applications where maximum airflow is needed
• Colors: 15 designer colors are available, including 6 quickship colors: almond, black, gray, blue frost, charcoal, and white
• Finish: 2 mil powder coated in any of 15 designer colors
• Body Construction: 14 gauge diamond perforated doors and 18 gauge solid backs; all other components are 16 gauge
• Wall Hooks: 3 wall hooks are included with 12" W units; 4 wall hooks are included with 15" & 18" W units

• Ceiling Hook: Included with 12" D and 15" D units
• Coat Rod: Only included with 18" D units

• Shelf: Included
• Door: Rubber door silencers for quiet operation
• Hinges: Continuous full-length staked piano hinge for security
• Handle: Stainless steel recessed handle for safety
• Latch: Single-point latch is maintenance free with a built-in anti-pry feature
• Locks: Compatible with built-in lock options
• Legs: 6" H legs are included
• Plates: Polished aluminum number plate riveted to door face with black numerals ½” high. Default numbering sequence is #1 and up. If a special numbering sequence is required, please enter your desired sequence within the text box available at checkout.

  *Due to variances among color monitors the colors that appear on your screen may not be exact. If color is important you must request samples prior to ordering. Colors are subject to change without notice.

Specifications

GENERAL

• 1.01 - Work Included:
  A. The lockers shall be powder-coated steel as manufactured
  by ASI Storage Solutions, Eastanollee, GA 30538.
  B. Furnish all labor and materials for completion of work in this
  section as shown in the approved drawings and specifi ed herein



PRODUCT

• 2.01 - Material: All major steel parts shall be of mild cold
  rolled commercial quality steel.
• 2.02 - Finish: All material shall be power washed and
  phosphate treated for maximum fi nish color adhesion. All
  components shall be fi nished with a 2 mm hybrid epoxy/
  polyester powder, electrostatically applied to ensure uniform
  thickness and baked to cure.

• 2.03 - Construction: All lockers shall be built on a unit principle
  with common intermediate uprights separating units.
• 2.04 - Door Frames: Shall be 16 gauge formed in a channel
  shape. Vertical members shall have additional fl ange to provide
  a continuous door strike. Cross frame members shall also be 16
  gauge channel shaped, including intermediate cross frames on
  double and triple tier lockers.
• 2.05 - Doors: Shall be 14 gauge, channel shaped on both the
  lock and hinge side with angle formations across the top and
  bottom. Single, double and triple tier locker doors shall have a
  16 gauge full height reinforcement channel.
• 2.06 - Ventilation: All locker sides and doors 20” or higher shall be
  perforated with diamond-shaped openings ¾” wide x 1-1/2” high in
  a quantity and pattern to ensure maximum ventilation and maintain
  structural strength. All other doors shall have small diamond-shaped
  perforations 7/16” wide x 15/16” high.
• 2.07 - Body: Backs shall be 18 gauge; all other body parts shall be
  16 gauge. Bolt spacing shall not exceed 9” o.c
• 2.08 - Hinges: Shall be full length 16 gauge continuous piano
  type riveted to both door and frame.
• 2.09 - Handles: Shall be one-piece 20 gauge deep drawn
  stainless steel cup designed to accommodate locks.

• 2.10 - Latching: All lockers shall have an 11 gauge frame hook
  secured to the frame. The frame hook shall have a padlock hasp
  protruding through the recessed handle. A rubber silencer
  shall be fi rmly secured to the frame at each latch hook.
• 2.11 - Interior Equipment: Single tier lockers 48” or higher shall
  have a shelf. If under 18” deep, locker shall have three wall hooks
  and one ceiling hook. Single tier lockers 18” deep or more shall
  have a coat rod instead of a ceiling hook. Double tier lockers
  shall have three wall hooks and one ceiling hook. Triple tier
  lockers shall have three wall hooks and one ceiling hook. Triple
  tier lockers shall have three wall hooks for 12” wide and 4 wall
  hooks for 15” and wider lockers
• 2.12 - Number Plates: Each locker shall have a polished
  aluminum number plate riveted to door face with black
  numerals ½” high.
• 2.13 - Color: Doors, Frames, and all body parts shall be fi nished
  in same color

• 2.14 Assembly - All locker components shall be assembled
  by use of rivets.



EXECUTION

• 3.01 - Installation: Lockers shall be installed in accordance
  with ASI’s installation instructions and shall be level and
  plumb with fl ush surfaces and rigid attachment to anchoring
  surfaces.
