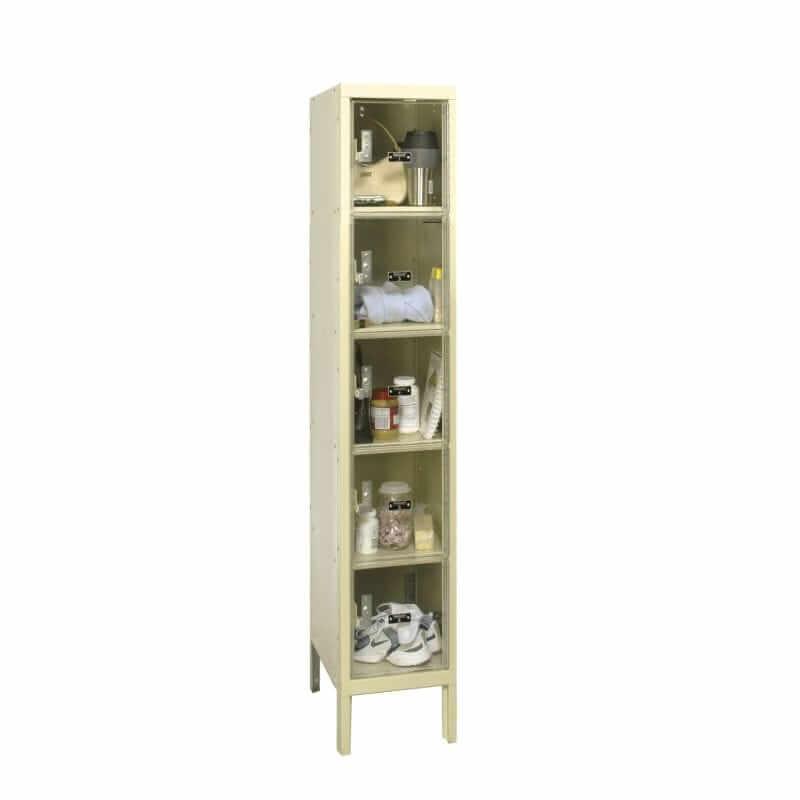

Safety-View Plus Metal Locker — 5 Tier, 1 Wide
Hallowell #USVP1226-5PT
LEAD TIME
usually ships within
48 hours
48 hours
🟢 In Stock
- $261.00
-
Regular price
$523.04 -
-50%
Couldn't load pickup availability
-
- Model: Hallowell Five Tier Safety-View Plus 'Windowed' Box Lockers
- Type: Provides a secure storage solution with patented polycarbonate doors allowing a clear view of contents
- Application: Ideal for industry, retail, offices and recreational facilities where a view of the locker contents is necessary
- Color: Tan
- Body Construction: 24 gauge steel
- Door: High strength injection molded clear polycarbonate doors for unobstructed content viewing
- Hinges: Continuous piano type
- Handle: Single-point projecting friction catch door pull prepared for both padlock or built-in lock
- Legs: 6" high legs are standard. Lockers without legs are available for a nominal charge.
- Safety: Meets UL flammability standards. Polycarbonate is approved by the Consumer Product Safety Commission.
-
Plates: Aluminum number plates are black with silver etched numerals and include mounting hardware
*Actual product color may vary from the images shown. Every monitor or mobile display has a different capability to display colors, and every individual may see these colors differently. In addition, lighting conditions at the time the photo was taken can also affect an image's color.
-
-
General: Lockers shall be "Hallowell Safety-View Plus KD Box Lockers" as manufactured by Hallowell or approved equal. Fabricate lockers square, rigid and without warp, with metal faces flat and free from dents or distortion. Make all exposed metal edges safe to touch. Weld frame members together to form rigid, one-piece structure. Weld, bolt, or rivet other joints and connections as standard with manufacturer. Grind exposed welds flush. Do not expose bolts or rivet heads on fronts of locker doors or frames except for fastening of number plates.
Lockers shall be GREENGUARD Gold CertifiedSM
Finishing: All locker parts to be cleaned and coated after fabrication with a seven stage zinc/iron phosphate solution to inhibit corrosion, followed by a coat of high grade custom blend powder electrostatically sprayed and baked at 350 degrees Fahrenheit for a minimum of 20 minutes to provide a tough durable finish. Stock color is #729 Tan. Interior components to be painted to match the exterior color.
Frame: Fabricate of 16 gauge (minimum) channels welded to horizontal channels top and bottom with integral continuous vertical door stop/strike formed on both latch and hinge side.
Safety-View Plus Box Doors: Doors to be of a single piece of polycarbonate, injection molded to include single bends at all four sides for strength. The material used for the fabrication of the door shall be a clear, polished surface, Ultraviolet-stabilized polycarbonate not less than 1/8” thick to meet building code requirements for a CC-1 rating and be listed with the Underwriters Laboratories for the UL flammability standard and the UL972 standard for burglary resistant glazing materials. Polycarbonate must be approved for Consumer Product Safety Commission (CPSC 16CFR 1201) Categories I & II and ANSI Z97.1-1984 Safety Glazing Standards. Doors shall include a combination friction catch door pull. Padlock Strike Plates are optional. Doors shall be fabricated to accept a built-in combination lock or padlock.
Door Hinges: Doors shall include a plated 16 gauge continuous piano hinge riveted to both the door and the frame. All doors to be right hand, side hinged.
Body: Fabricate back and sides of 24 gauge (minimum) sheet steel, with double flanged connections extending full height. Form top, bottom and intermediate tier dividers of 24 gauge (minimum) sheet steel with single return bends at all sides. Bolt top and bottom to front horizontal frame members at not less than one place in addition to side panels.
Locks (If Required): Shall be master keyed to one system for the entire project.
(See lock use chart for suggested lock application).Two-Year Warranty: Hallowell KD lockers are covered against all defects in materials and workmanship excluding finish, damage resulting from deliberate destruction and vandalism under this section for a period of two years.
-
-
